1D brand ignition coil factory introduction

Ignition coil production process 6 key steps:

01）Material preparation: The main materials of the ignition coil include copper wire, insulation material and magnetic material.

These materials need to be prepared first, and cut and clean according to the design requirements.

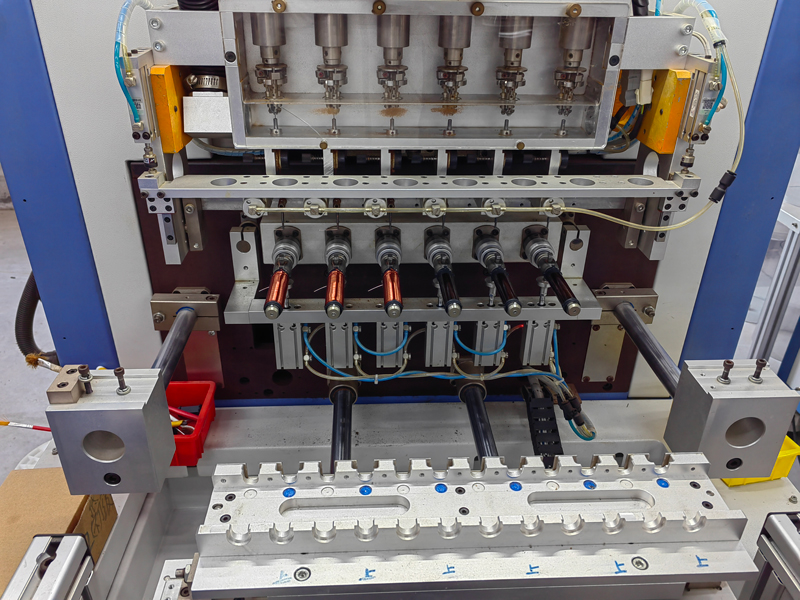

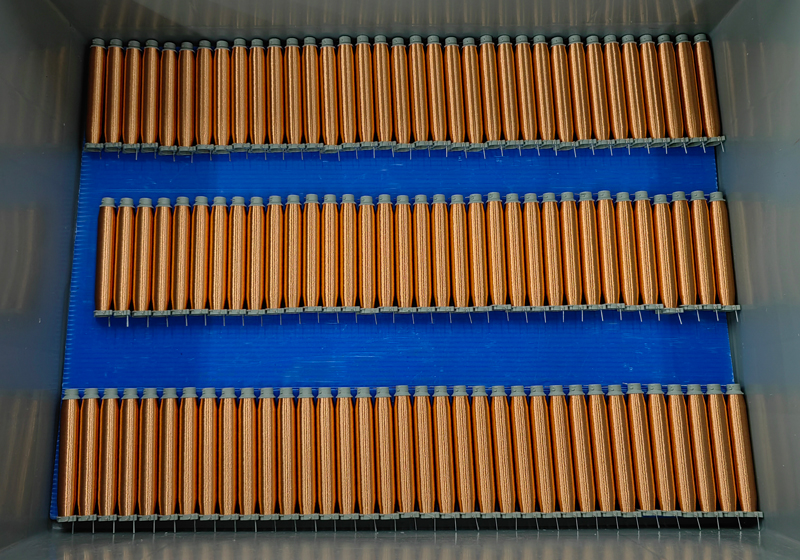

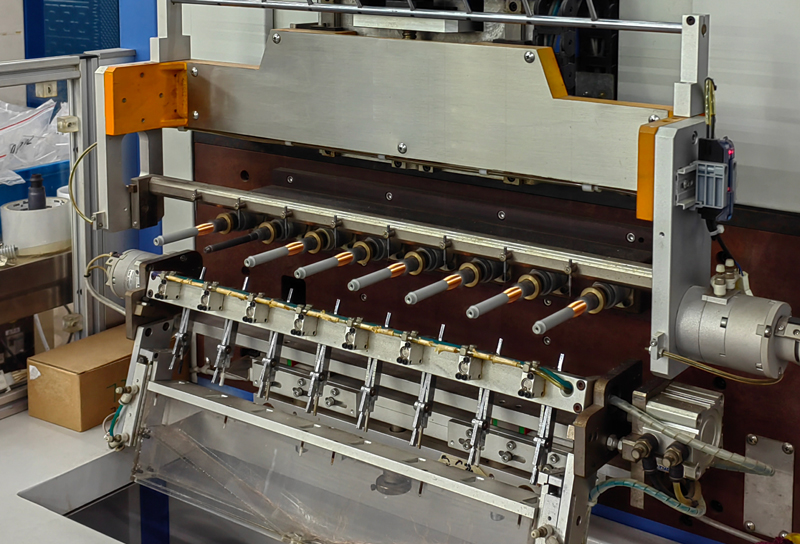

02）Coil winding: copper wire is made into coil according to design requirements.

This step is one of the key steps in the ignition coil production process, and is wound using automated equipment to ensure that the coil size and the gap between the wires meet the requirements.

03）Insulation treatment: The wound coil is insulated to prevent current leakage and short circuit.

Commonly used insulating materials are insulating paint, insulating glue and insulating paper.

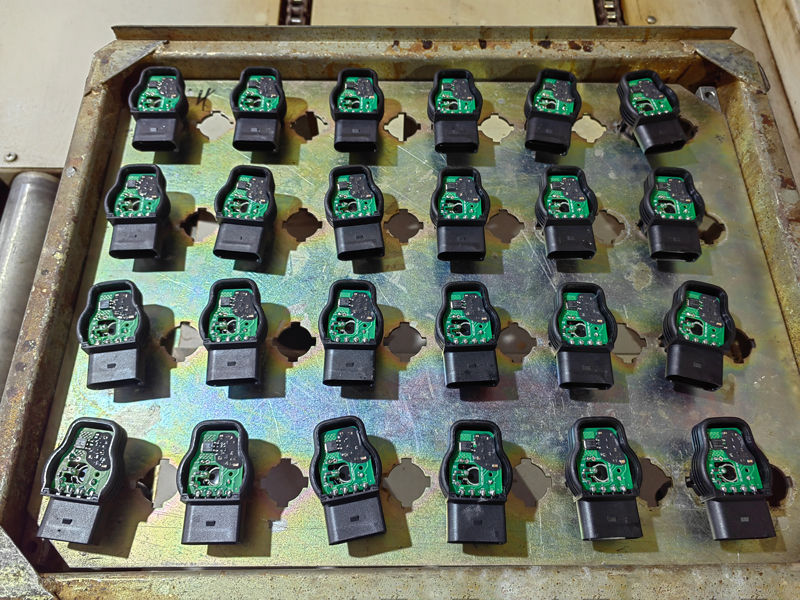

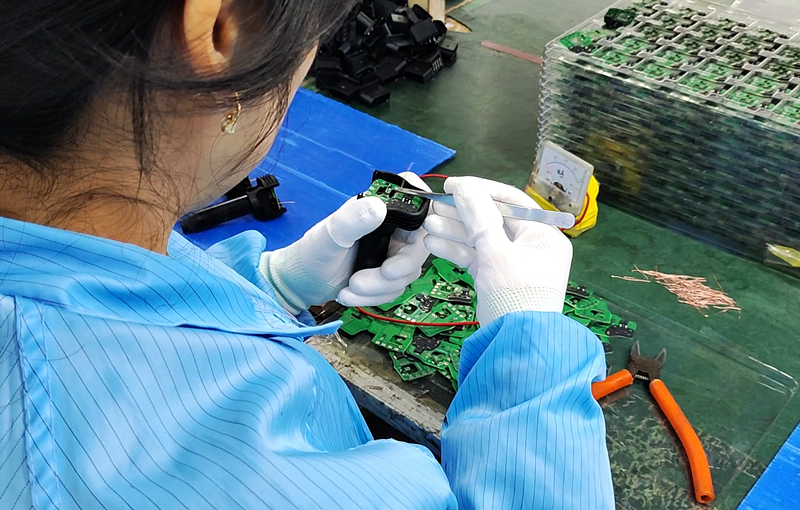

04）Assembly: Assemble the various components of the ignition coil, including the magnet, high voltage plug and coil.

Ensure that the components are properly installed and fixed, and quality checks are carried out to ensure that the assembled ignition coils meet requirements and standards.

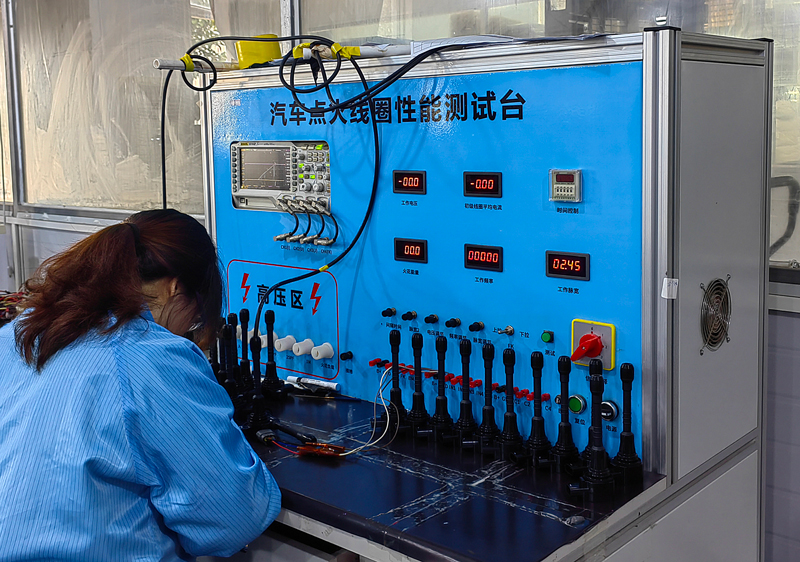

5）Test: The assembled ignition coil is tested to ensure its normal operation and stable performance.

The test items include coil resistance, insulation resistance and voltage resistance.

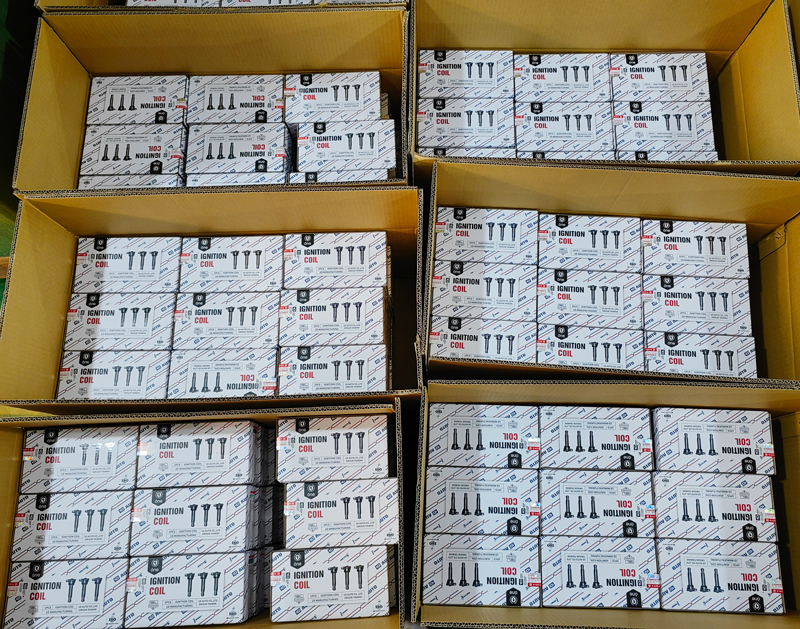

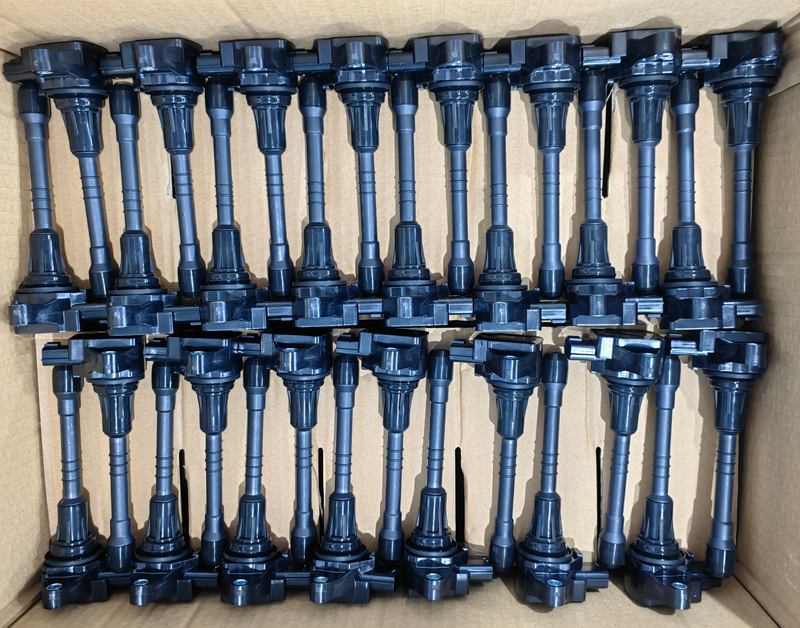

06）Packaging and delivery: The tested ignition coils are packaged to protect them from damage during transportation and storage, and are ready for delivery.

The above steps outline the entire production process of the ignition coil from design to final delivery.

Each step is very important.

1D ignition coil adopts high-quality imported materials and automatic production equipment to ensure product reliability and high performance.

Looking forward to your contact.
